From a List of Dimensions to Objects

This is the lesson where the course pays off. Everything so far produced one thing at a time. Here a list of parts produces a whole assembly, each part with its own size and position, and the list is the only thing you edit.

The list is the model

A parts list is just data: a name, a size and a position per part. The loop walks the list and builds one object per row. That is the entire idea, and it scales from six parts to six hundred without changing a line of logic.

("Base", (0.62, 0.32, 0.02), (0.31, 0.16, 0.010)): name, size in metres, position.
part.dimensions = size: sets the real outer size, so the part is on dimension.
Positions are the centres of the parts, which keeps the arithmetic predictable.
The script prints every part in millimetres at the end, which is your first quality check.

parts_table.py

# A table of parts becomes a whole assembly
import bpy

for obj in list(bpy.data.objects):
    bpy.data.objects.remove(obj, do_unlink=True)

# name, size (x, y, z), position - straight from a parts list
PARTS = (
    ("Base",    (0.62, 0.32, 0.02), (0.31, 0.16, 0.010)),
    ("Post_A",  (0.04, 0.04, 0.28), (0.05, 0.05, 0.150)),
    ("Post_B",  (0.04, 0.04, 0.28), (0.57, 0.05, 0.150)),
    ("Post_C",  (0.04, 0.04, 0.28), (0.05, 0.27, 0.150)),
    ("Post_D",  (0.04, 0.04, 0.28), (0.57, 0.27, 0.150)),
    ("Top",     (0.62, 0.32, 0.02), (0.31, 0.16, 0.300)),
)

for name, size, loc in PARTS:
    bpy.ops.mesh.primitive_cube_add(size=1, location=loc)

    part = bpy.context.object
    part.name = name
    part.dimensions = size        # exact outer size, in metres

print("parts built:", len(bpy.data.objects))
for obj in bpy.data.objects:
    print("  %-8s %s mm" % (obj.name,
          tuple(round(v * 1000) for v in obj.dimensions)))

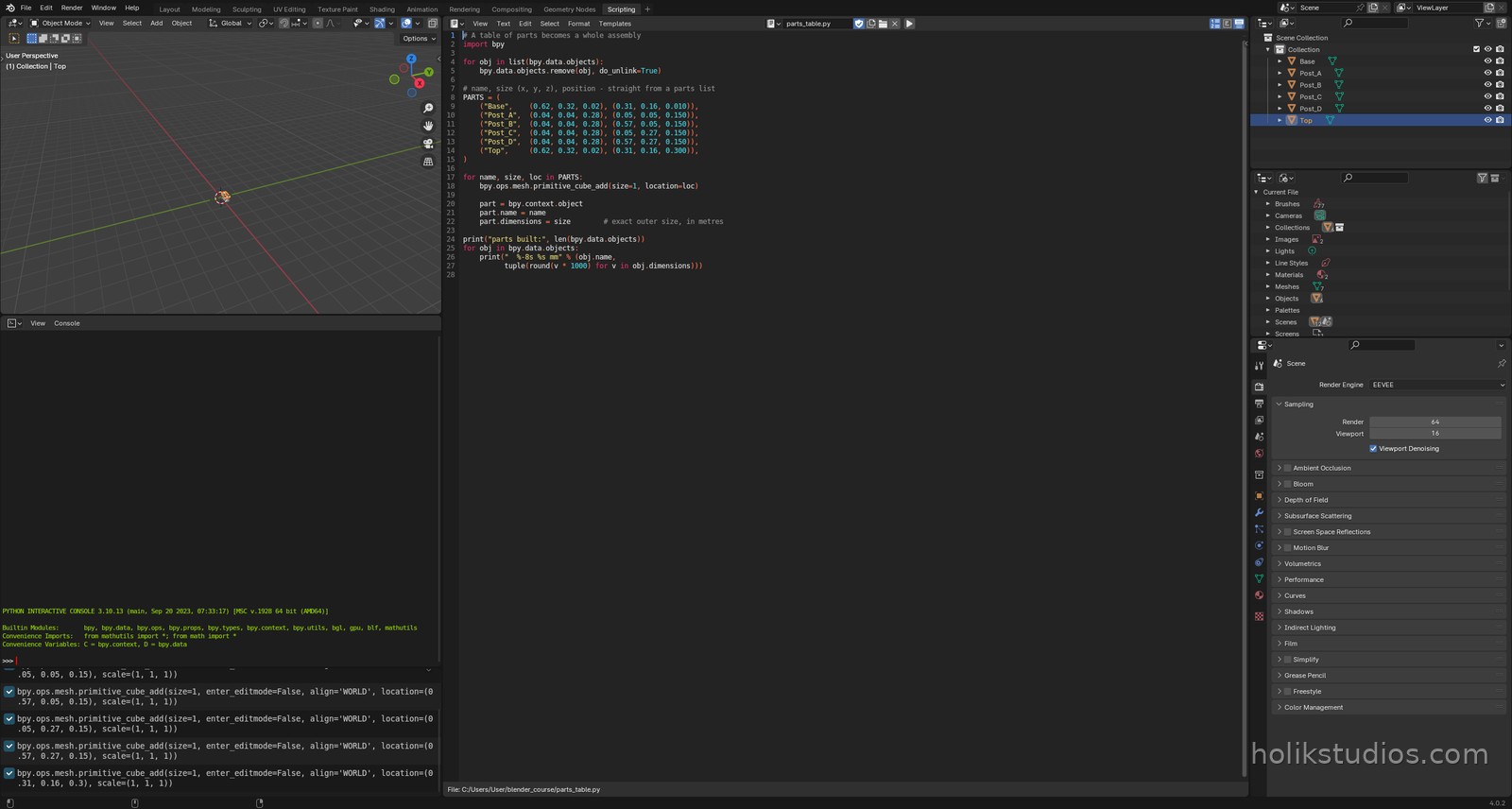

The parts table script and the stand it built — Six parts, six rows of data. The whole stand exists because a list said so.

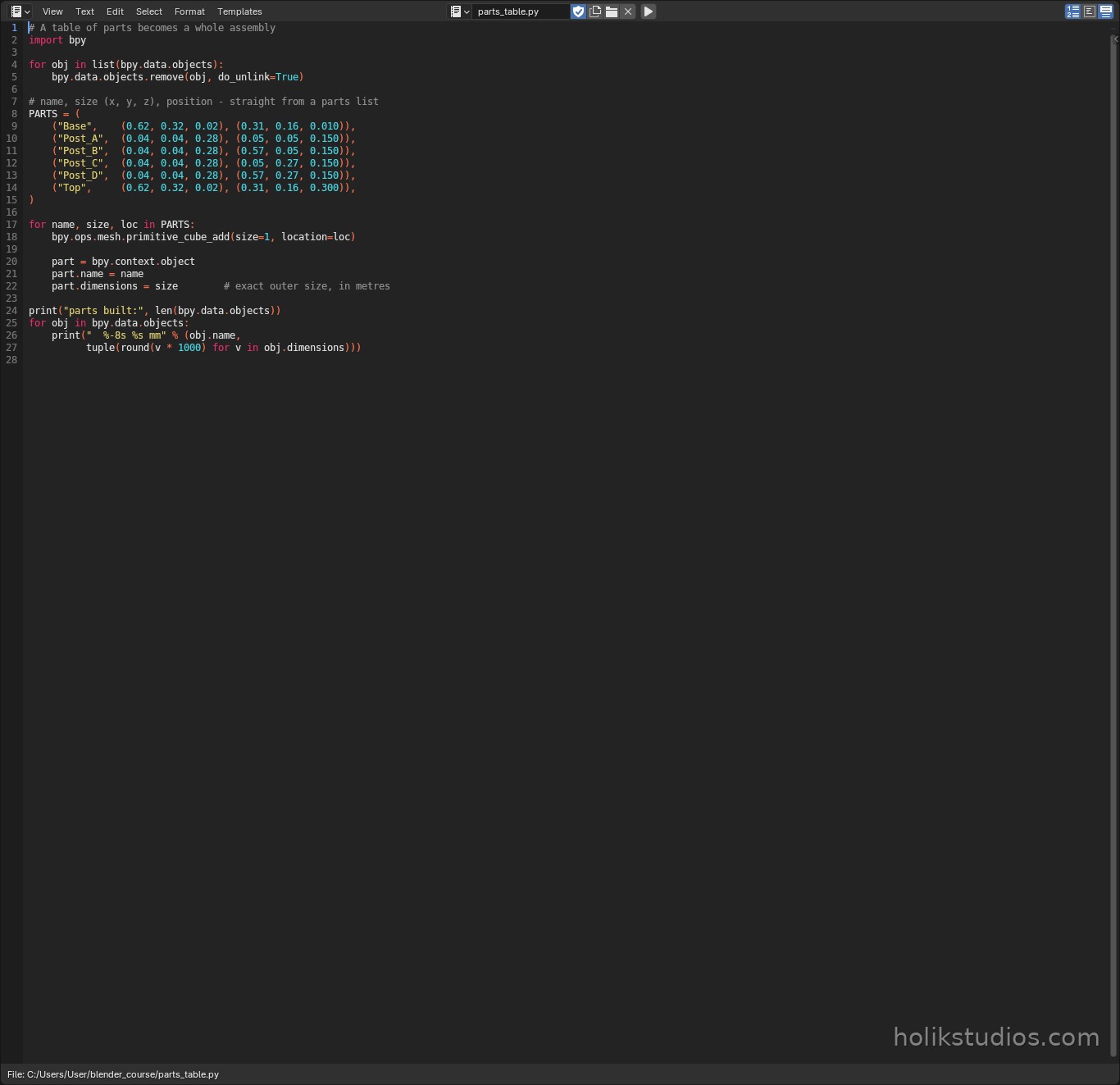

Text Editor close-up of the parts table — The script up close: one tuple per part, size and position as numbers.

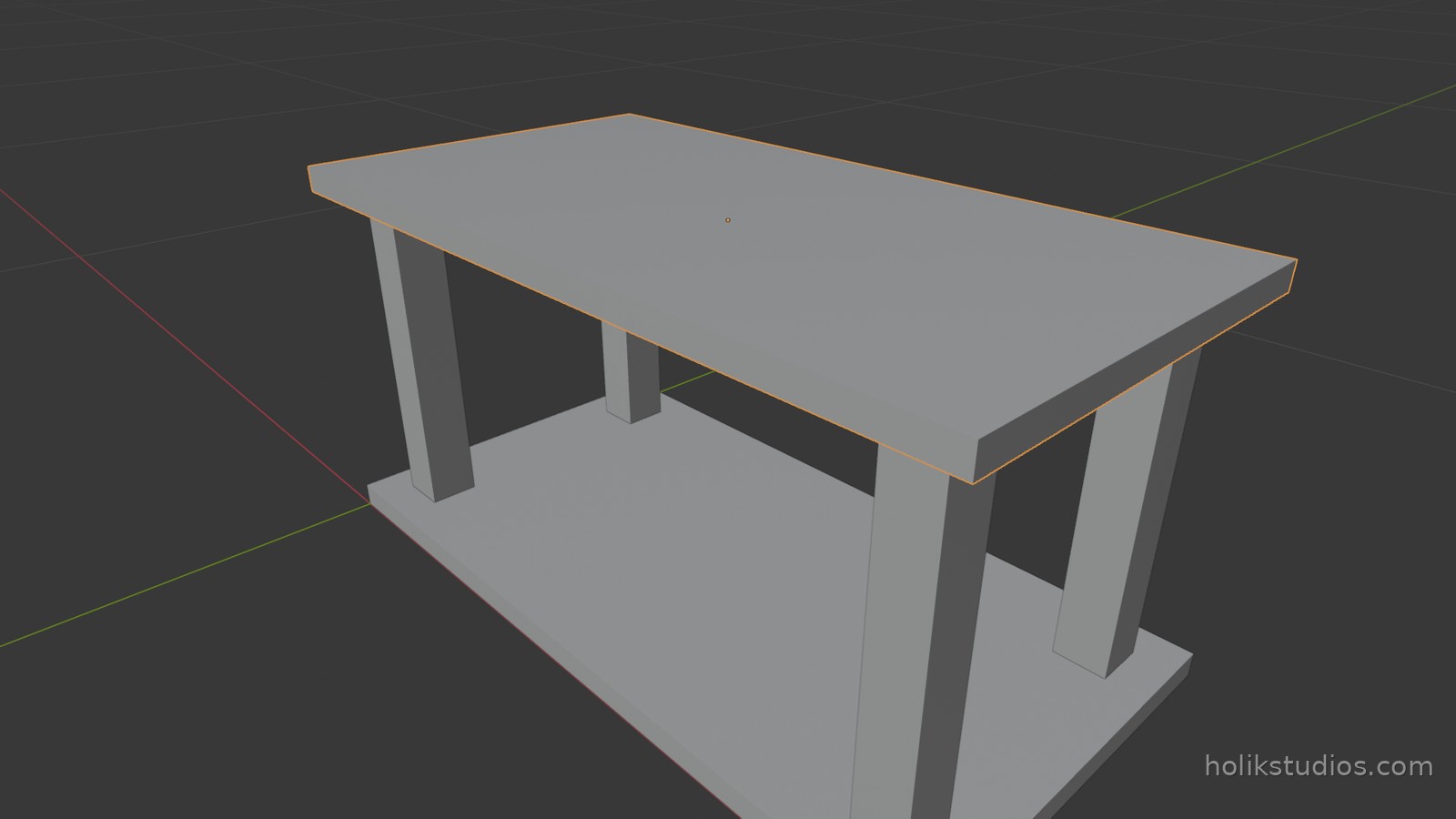

Perspective render of the assembled stand — A stand built from a parts list: base, four posts, top. Change a number, the part moves.

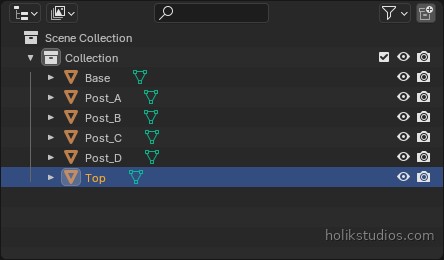

Outliner close-up of the assembled parts — The Outliner up close: Base, Post_A to Post_D, Top. Nothing called Cube.001.

Where this pays off in real work

Furniture and fittings: one script, a list per product, ten products in an afternoon.
CAD-style sets: dimensions come from a drawing or a spreadsheet, not from your memory.
Client revisions: the client changes one size, you change one number, the assembly rebuilds.
Quoting: the script prints every part with its size, which is exactly what a supplier asks for.

Next is the operation that turns parts into manufactured shapes: cutting holes with a boolean, which is how a plate becomes a sieve.
